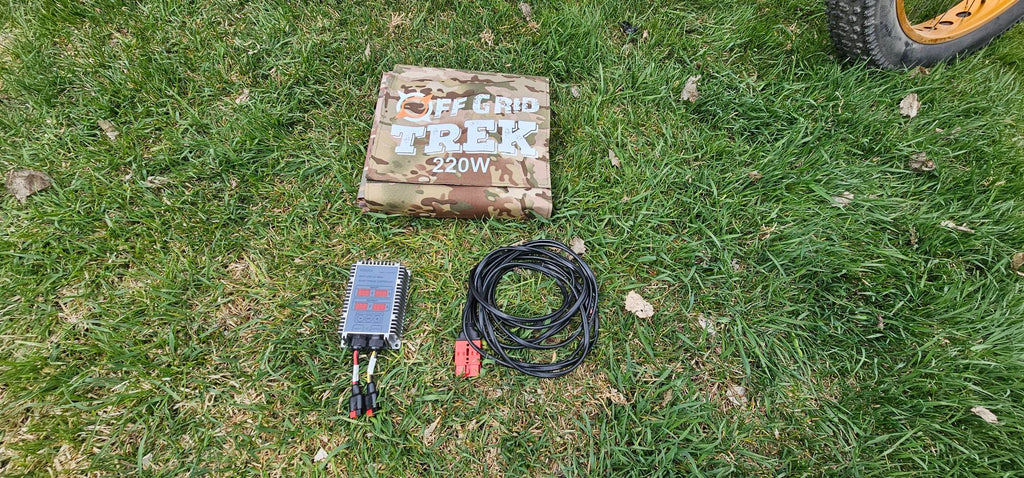

Package includes:
1 x 220W Solar Blanket
1 x 5m/16 1/2ft Extension Cable
1 x 6ft Battery Connection Cable
1 x Elejoy 400W Boost controller, (Programable)
Let us know what connector end you have, that plugs into your battery from the charger, we have most of the popular ones in stock. This way we can send you the correct cable for your ebike.
Model | OGT220 (220w) |
Solar panel | ETFE laminated solar panel with PCB board |
Solar cell | Gen 3 Sunpower solar cell 24.1% efficiency |
Output | 25V*8.8A, 29VOC, 5V/3.4A, 9V3A,12V/3A,15V/2.3A, 20V2.3A |
Unfolding size | 68.5X36.6X0.15inch/1740X930X4mm |
Folded size | 12.6X12.6X2.8inch/320X320X70mm |
Weight | 4.5kg/9.9lbs/158.7oz |
Color | OGTCam Rubberized Exterior, similar to Multicam |
Elejoy 400W Boost controller, (Programable), instructions included
- 【WATERPROOF AND REAL TIME TRACKING】IP66 waterproof, dustproof, shockproof, suitable for outdoor use. Max power: 400w. the maximum current is 15A. MPPT solar charge controller is suitable for solar panels of different voltages, with high efficiency MPPT real time tracking. Compatible with various 24-85V batteries.
- 【MULTIPLE INTELLIGENT PROTECTION】Voltage and current LED display, efficiency is more than or equal to 95%. The solar panel charge regulator not only extends battery life and improves system performance, but also has multiple protection functions: battery under voltage, over voltage, output overload, short circuit, battery, solar panel anti-back connect protection, temperature protection.
- 【HIGH CHARGING EFFICIENCY AND EASY TO USE】High efficiency synchronous rectifier circuit structure is adopted, which has high conversion efficiency in low power charging environment. Simple button operation, adjuatable charging and discharging control parameters. A manual with clear connection steps is included. You can install MPPT charge controller anywhere according to your needs!
-
【MULTIPLE BATTERY TYPE SUPPORT AND WIDE APPLICATIONS】 Support lithium, acid, sealed, gel, flooded, etc. Suitable for solar street light controllers, solar chargers, solar electric bicycle, solar electric tricycles, solar toy cars, household solar panels, solar monitoring and other usage scenarios.
